lsst::gauss2d::Object Class Reference

A generic object from the gauss2d library. More...

#include <object.h>

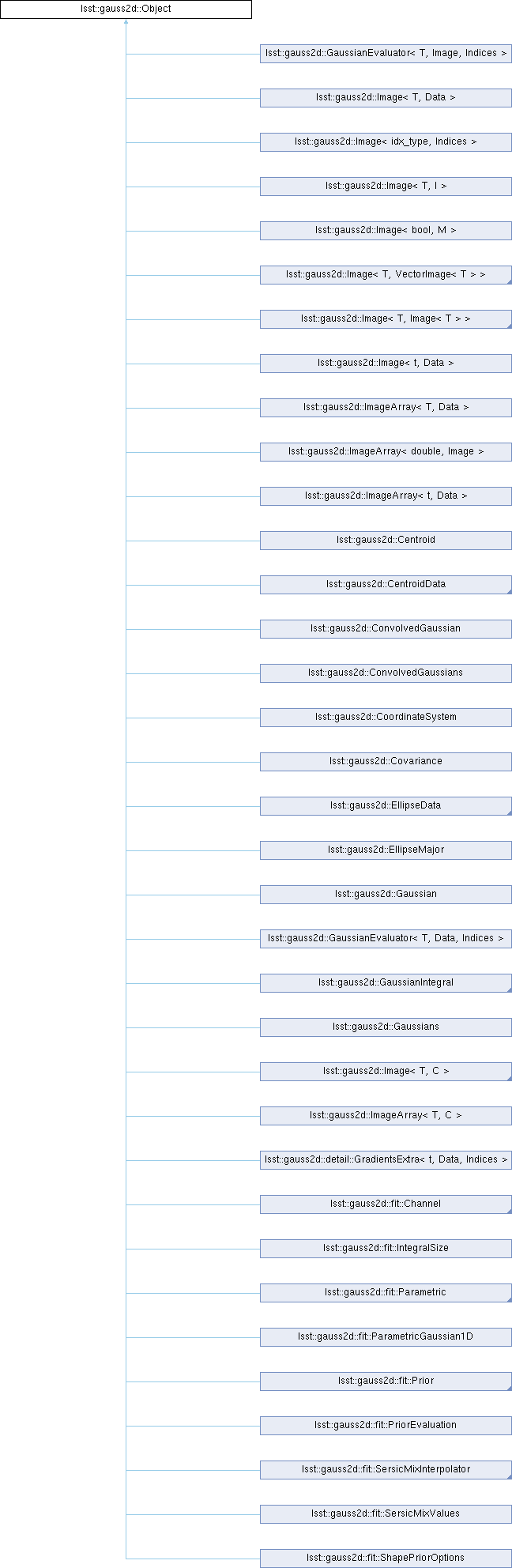

Inheritance diagram for lsst::gauss2d::Object:

Public Member Functions
virtual	~Object ()=default
virtual std::string	repr (bool name_keywords=false, std::string_view namespace_separator=CC_NAMESPACE_SEPARATOR) const =0
	Return a full, callable string representation of this.
virtual std::string	str () const =0
	Return a brief, human-readable string representation of this.

Static Public Member Functions
static std::string_view	null_str (const std::string_view &namespace_separator)

Static Public Attributes
static constexpr std::string_view	CC_NAMESPACE_SEPARATOR = "::"
	The C++ namespace separator.
static constexpr std::string_view	NULL_STR_GENERAL = "None"
static constexpr std::string_view	PY_NAMESPACE_SEPARATOR = "."

Friends
std::ostream &	operator<< (std::ostream &out, const Object &obj)

Detailed Description

A generic object from the gauss2d library.

Objects have string representations that are guaranteed to be valid in C++ and should also be valid in Python bindings, if implemented correctly. The interface may be expanded in the future.

Definition at line 40 of file object.h.

Constructor & Destructor Documentation

~Object()

virtual lsst::gauss2d::Object::~Object ( )

virtualdefault

Member Function Documentation

null_str()

static std::string_view lsst::gauss2d::Object::null_str ( const std::string_view & namespace_separator )

inlinestatic

Definition at line 49 of file object.h.

                                                                              {
        return namespace_separator == CC_NAMESPACE_SEPARATOR ? "nullptr" : NULL_STR_GENERAL;
    }

repr()

virtual std::string lsst::gauss2d::Object::repr ( bool name_keywords = false, std::string_view namespace_separator = CC_NAMESPACE_SEPARATOR ) const

pure virtual

Return a full, callable string representation of this.

Parameters

name_keywords	Whether to prefix arguments with "{name}=", where name is the arg name in the header (as with keyword arguments in Python).
namespace_separator	The string to use to delimit namespaces, i.e. :: in C++ and . in Python.

Returns

A callable string representation of this, which should return an an identical object to this.

Note

The representation with name_keywords=false must be callable in C++. The representation with name_keywords=true should be callable in Python, if there are any bindings.

Implemented in lsst::gauss2d::Centroid, lsst::gauss2d::CentroidData, lsst::gauss2d::CentroidValues, lsst::gauss2d::ConvolvedGaussian, lsst::gauss2d::ConvolvedGaussians, lsst::gauss2d::CoordinateSystem, lsst::gauss2d::Covariance, lsst::gauss2d::detail::GradientsExtra< t, Data, Indices >, lsst::gauss2d::Ellipse, lsst::gauss2d::EllipseData, lsst::gauss2d::EllipseMajor, lsst::gauss2d::EllipseValues, lsst::gauss2d::fit::CentroidParameters, lsst::gauss2d::fit::Channel, lsst::gauss2d::fit::Data< T, I, M >, lsst::gauss2d::fit::Data< T, Image, Mask >, lsst::gauss2d::fit::Data< T, Image, Mask >, lsst::gauss2d::fit::EllipticalComponent, lsst::gauss2d::fit::FractionalIntegralModel, lsst::gauss2d::fit::GaussianComponent, lsst::gauss2d::fit::GaussianModelIntegral, lsst::gauss2d::fit::GaussianParametricEllipse, lsst::gauss2d::fit::GaussianPrior, lsst::gauss2d::fit::IntegralSize, lsst::gauss2d::fit::LinearIntegralModel, lsst::gauss2d::fit::LinearSersicMixInterpolator, lsst::gauss2d::fit::Model< T, Image, Indices, Mask >, lsst::gauss2d::fit::Observation< T, I, M >, lsst::gauss2d::fit::ParametricGaussian1D, lsst::gauss2d::fit::PriorEvaluation, lsst::gauss2d::fit::PsfModel, lsst::gauss2d::fit::SersicEllipseData, lsst::gauss2d::fit::SersicMixComponent, lsst::gauss2d::fit::SersicMixValues, lsst::gauss2d::fit::SersicModelIntegral, lsst::gauss2d::fit::SersicParametricEllipse, lsst::gauss2d::fit::ShapePrior, lsst::gauss2d::fit::ShapePriorOptions, lsst::gauss2d::fit::Source, lsst::gauss2d::Gaussian, lsst::gauss2d::GaussianEvaluator< T, Data, Indices >, lsst::gauss2d::GaussianEvaluator< T, Image, Indices >, lsst::gauss2d::GaussianEvaluator< T, Image, Indices >, lsst::gauss2d::GaussianIntegral, lsst::gauss2d::GaussianIntegralValue, lsst::gauss2d::Gaussians, lsst::gauss2d::Image< T, C >, lsst::gauss2d::Image< bool, M >, lsst::gauss2d::Image< bool, M >, lsst::gauss2d::Image< idx_type, Indices >, lsst::gauss2d::Image< idx_type, Indices >, lsst::gauss2d::Image< T, Data >, lsst::gauss2d::Image< T, Data >, lsst::gauss2d::Image< t, Data >, lsst::gauss2d::Image< T, I >, lsst::gauss2d::Image< T, I >, lsst::gauss2d::Image< T, Image< T > >, lsst::gauss2d::Image< T, VectorImage< T > >, lsst::gauss2d::ImageArray< T, C >, lsst::gauss2d::ImageArray< double, Image >, lsst::gauss2d::ImageArray< double, Image >, lsst::gauss2d::ImageArray< T, Data >, lsst::gauss2d::ImageArray< T, Data >, and lsst::gauss2d::ImageArray< t, Data >.

str()

virtual std::string lsst::gauss2d::Object::str ( ) const

pure virtual

Return a brief, human-readable string representation of this.

Implemented in lsst::gauss2d::Centroid, lsst::gauss2d::CentroidData, lsst::gauss2d::CentroidValues, lsst::gauss2d::ConvolvedGaussian, lsst::gauss2d::ConvolvedGaussians, lsst::gauss2d::CoordinateSystem, lsst::gauss2d::Covariance, lsst::gauss2d::detail::GradientsExtra< t, Data, Indices >, lsst::gauss2d::Ellipse, lsst::gauss2d::EllipseData, lsst::gauss2d::EllipseMajor, lsst::gauss2d::EllipseValues, lsst::gauss2d::fit::CentroidParameters, lsst::gauss2d::fit::Channel, lsst::gauss2d::fit::Data< T, I, M >, lsst::gauss2d::fit::Data< T, Image, Mask >, lsst::gauss2d::fit::Data< T, Image, Mask >, lsst::gauss2d::fit::EllipticalComponent, lsst::gauss2d::fit::FractionalIntegralModel, lsst::gauss2d::fit::GaussianComponent, lsst::gauss2d::fit::GaussianModelIntegral, lsst::gauss2d::fit::GaussianParametricEllipse, lsst::gauss2d::fit::GaussianPrior, lsst::gauss2d::fit::IntegralSize, lsst::gauss2d::fit::LinearIntegralModel, lsst::gauss2d::fit::LinearSersicMixInterpolator, lsst::gauss2d::fit::Model< T, Image, Indices, Mask >, lsst::gauss2d::fit::Observation< T, I, M >, lsst::gauss2d::fit::ParametricGaussian1D, lsst::gauss2d::fit::PriorEvaluation, lsst::gauss2d::fit::PsfModel, lsst::gauss2d::fit::SersicEllipseData, lsst::gauss2d::fit::SersicMixComponent, lsst::gauss2d::fit::SersicMixValues, lsst::gauss2d::fit::SersicModelIntegral, lsst::gauss2d::fit::SersicParametricEllipse, lsst::gauss2d::fit::ShapePrior, lsst::gauss2d::fit::ShapePriorOptions, lsst::gauss2d::fit::Source, lsst::gauss2d::Gaussian, lsst::gauss2d::GaussianEvaluator< T, Data, Indices >, lsst::gauss2d::GaussianEvaluator< T, Image, Indices >, lsst::gauss2d::GaussianEvaluator< T, Image, Indices >, lsst::gauss2d::GaussianIntegral, lsst::gauss2d::GaussianIntegralValue, lsst::gauss2d::Gaussians, lsst::gauss2d::Image< T, C >, lsst::gauss2d::Image< bool, M >, lsst::gauss2d::Image< bool, M >, lsst::gauss2d::Image< idx_type, Indices >, lsst::gauss2d::Image< idx_type, Indices >, lsst::gauss2d::Image< T, Data >, lsst::gauss2d::Image< T, Data >, lsst::gauss2d::Image< t, Data >, lsst::gauss2d::Image< T, I >, lsst::gauss2d::Image< T, I >, lsst::gauss2d::Image< T, Image< T > >, lsst::gauss2d::Image< T, VectorImage< T > >, lsst::gauss2d::ImageArray< T, C >, lsst::gauss2d::ImageArray< double, Image >, lsst::gauss2d::ImageArray< double, Image >, lsst::gauss2d::ImageArray< T, Data >, lsst::gauss2d::ImageArray< T, Data >, and lsst::gauss2d::ImageArray< t, Data >.

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream & out, const Object & obj )

friend

Definition at line 75 of file object.h.

                                                                      {
        out << obj.str();
        return out;
    }

Member Data Documentation

CC_NAMESPACE_SEPARATOR

std::string_view lsst::gauss2d::Object::CC_NAMESPACE_SEPARATOR = "::"

staticconstexpr

The C++ namespace separator.

Definition at line 45 of file object.h.

NULL_STR_GENERAL

std::string_view lsst::gauss2d::Object::NULL_STR_GENERAL = "None"

staticconstexpr

Definition at line 46 of file object.h.

PY_NAMESPACE_SEPARATOR

std::string_view lsst::gauss2d::Object::PY_NAMESPACE_SEPARATOR = "."

staticconstexpr

Definition at line 47 of file object.h.

---

The documentation for this class was generated from the following file:

• /j/snowflake/release/lsstsw/stack/lsst-scipipe-12.2.0/Linux64/gauss2d/gbf99507273+b0138be388/include/lsst/gauss2d/object.h
